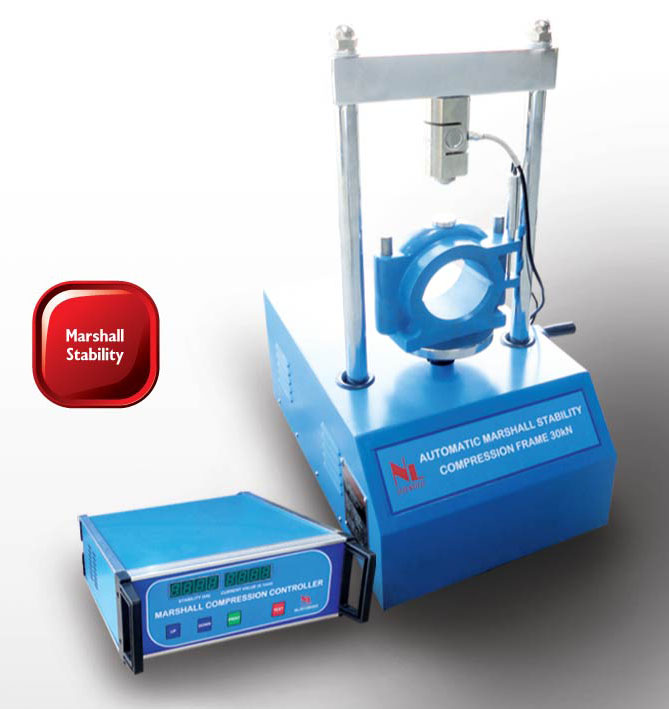

NL 2010 X / 003 Automatic Marshall Stability Compression Frame 30kN

This bench – mounting mechanical load frame is ruggedly constructed to encompass the strain and loads involved with the test. A limit switch is provided for the bottom limit of travel.

Technical Specifications
* Platen Speed : 50,8 mm/ min
Vertical Clearance : 364 mm (platen down crosshead up)
* Horizontal Clearance : 265 mm
* Platen Diameter : 140 mm
* Platen Piston Travel : 50 mm
* Dimension (mm) : 530 (L) x 390 (W) x 700 (H)
* Approx. Weight : 100 kg
* Power : 240 V, 50/ 60 Hz, 1 ph, 0,5 Hp, 7,2 A, 1100 W

Unit Consists Of :~
* NL 2010 X / 003 – P 001 30 kN ‘S’ Type Load Cell
* NL 2010 X / 003 – P 002 Displacement Transducer
* NL 2010 X / 003 – P 003 Control Panel
* NL 2010 X / 003 – P 005 Stability Mould

Optional Accessories :~
* NL 2010 X / 003 – A 004 Mini Printer
* NL 2010 X / 003 – A 006 Printer Paper Roll (3 pieces/ pack)
