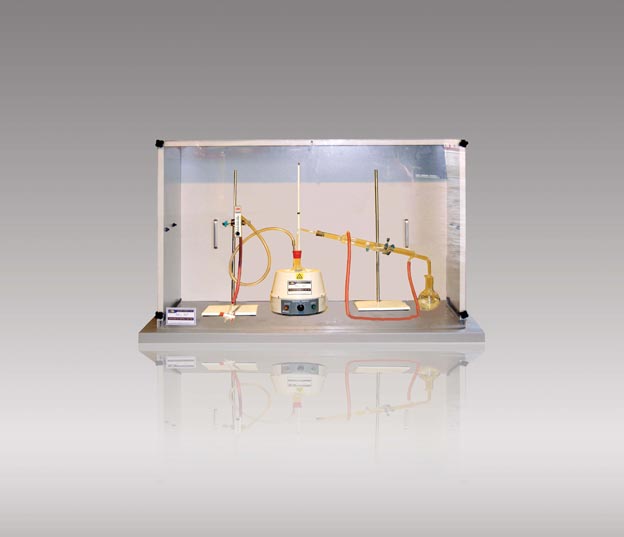

Used for recovering the asphalt from a solution of a previous extraction. The asphalt is recovered with properties substantially the same as those it possessed in the bituminous mixture and in quantities sufficient for further testing.
Technical Specifications
* Standard : ASTM D1856, CNR No.133
* Approx. Weight : 25 kg
* Power : 230 V, 50 / 60 Hz, 1 ph
Spare Part:-
* NL 2011 X / 001 – P 001 2 Extraction Flasks 250 ml Cap ( 1 no )
* NL 2011 X / 001 – P 002 Glass Tubing ( 1 no )
* NL 2011 X / 001 – P 003 Inlet Aeration Tube ( 2 nos )
* NL 2011 X / 001 – P 004 Electric Heating Mantle with Variable Temperature ( 1 no )
* NL 2011 X / 001 – P 005 Water Jacketed Condenser ( 1 no )
* NL 2011 X / 001 – P 006 Thermometer ASTM-2 to 300°C Range ( 1 no )
* NL 2011 X / 001 – P 007 Gas Flowmeter ( 1 no )
* NL 2011 X / 001 – P 008 Cork ( 1 no )
* NL 2011 X / 001 – P 009 Flexible Elastomeric Tubing ( 1 no )
* NL 2011 X / 001 – P 010 Separatory Funnel with Support ( 1 no )
Optional Accessories:-
* NL 2011 X / 001 – A 001 High Speed Continues Flow Filterless Centrifuge
