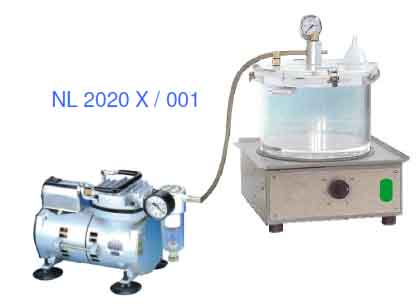

Large size heavy duty vacuum pyknometer, 10000 ml capacity General description and specifications. Used for determining the theoretical maximum specific gravity of uncompacted bituminous paving mixtures. It can also be used for the calculation of the percent air voids in compacted bituminous mixtures and the amount of bitumen absorbed by the aggregates. Made from robust transparent plastic. Fitted with vacuum gauge and valve.
Technical Specifications
* Capacity : 10000 ml
* Dimension : Approx 300 mm dia. x 450 mm high
* Weight : Approx 6 kg
Accessories:-
* NL 2020 X / 001 – A 001 Electromagnetic Vacuum Pynometer Vibro-Shaker
* NL 2020 X / 001 – A 002 Rubber Tubing, 6.5 mm ID x 16.5 mm, 2 m long
* NL 7022 X / 001 Rocker Two Stage Portable Vacuum Pump with vacuum gauge. Power 220-240V, 50 Hz, 1 Ph.
