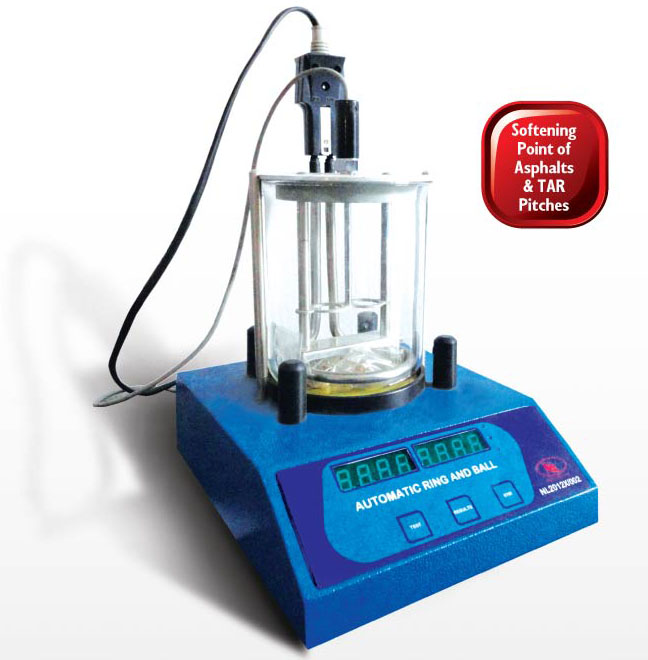

Portable with digital microprocessor designed, automatically determine the softening point of asphalt. Two laser sensor detect the ball fall determining the softening point. The bath temperature is measured by electronic system maintaining gradient 5°C min uniform temperature in the vessel during the test execution.
Program for transfer the values (parameter, date, time, user, file & etc) to a PC. Temperature range ambient to 150°C.
Technical Specifications
* Standard : ASTM D36, AASHTO T53, BS 2000, NF T66-008, DIN 52011, UNI 4161
* Dimension (mm) : 220 (L) x 280 (W) x 300 (H)
* Approx. Weight : 4 kg
* Power : 230 V, 50 / 60 Hz, 1 ph
Unit Consists Of :~
* NL 2012 X / 002 – P 001 Support Frame c/w Thermosensor & Heating Element ( 1 no )
* NL 2012 X / 001 – P 002 Brass Tapered Ring ( 2 nos )
* NL 2012 X / 001 – P 003 Ball Centering Guide ( 2 nos )
* NL 2012 X / 001 – P 004 Steel Ball Ø 9.5 mm ( 2 nos )
* NL 7002 X / 007 Glass Beaker 600 ml Capacity ( 1 no )
