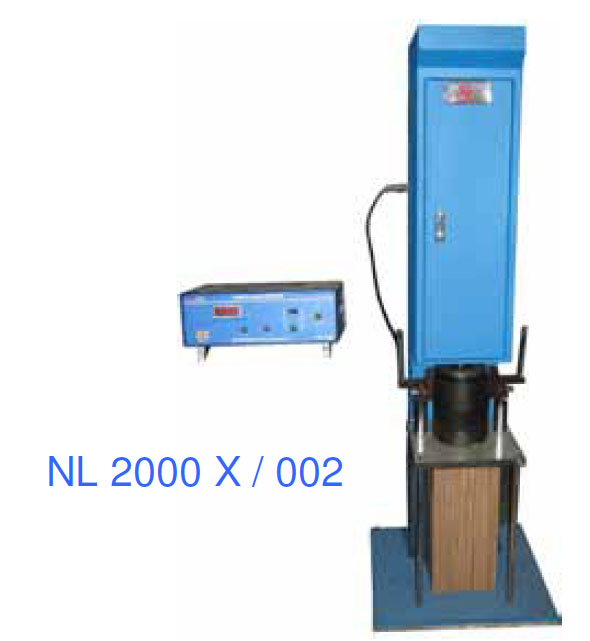

This ruggedly constructed machine has been designed to eliminate the laborious process of hand compaction. It automatic compacts the specimen and stops off the motor after the preset number of strokes has been completed on the automatic digital display counter. The Automatic Compactor come with safety features which automatic stop when the door open. A safety guard supply as standard. Supply complete with concrete base
Technical Specifications
* Standard : BS 598-107, ASTM D1559/D5581, AASHTO T245
* Dimension (mm) : 500 (L) x 405 (W) x 1635 (H)
* Weight of Hammer : 4.535 kg
* Total Height of Dropping : 457 mm
* Approx. Weight : 123 kg
* Power : 240 V, 50 / 60 Hz, 1 ph, 5 A, 370 W, 1 Hp
