Model CTS-50 Projector

Applications

Model CTS-50 is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method. It is widely used to check the U and V-shaped notch impact specimen with the features of easy operation, simple structure, direct inspection and high effectiveness.

Specifications

  • Screen diameter: 180mm
  • Working table: Square shape 110×125mm Round shape 90mm
  • Glass diameter of working table: 70mm
  • Working table travel(Length×width×height):±10×10 ±12mm
  • Rotating range of round working table: 0-360 degree
  • Magnifications: 50X
  • Objective magnification: 2.5X
  • Eye-field diameter: 3.8mm
  • Working distance: 22.89mm
  • Light source: tungsten lamp 12v 100W
  • Dimensions: 515×224×603mm
  • Weight: Approx. 20kG

Specimen Preparation Equipment

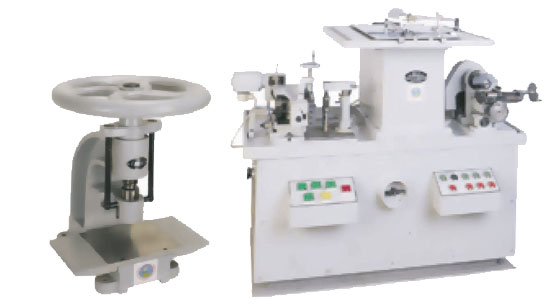

Model CPJ-25 Sheet-punching Machine

  • This machine is used for machining test samples, such as nonmetallic soft sheets and thin films. Using various kinds of standard cut-off knives, it can accurately and swiftly work out required samples.
  • Max. travel: 25mm
  • Max. Thickness of punching: 2mm
  • Model ZHY-W Universal Sampling Machine
  • This machine is used for machining the standard samples of nonmetallic materials such as plastic and organic glass etc, which are used in the tests of board impact, tension, compression and thermal energy etc. It can mill notches & curves, and can cut & mill the flats.
  • Max. cutting length: 300mm
  • Max. cutting thickness: 15mm
  • Max. length of milling flat: 300mm
  • Specs of milling cutter (grinding wheel used of cutting: 200×32×2mm
  • Cutting length used for milling notch: 60mm
  • Specs cutter used for milling flat: 30×12×30mm
