HVS-1000A With Software

MODEL HVS-1000A DIGITAL DISPLAY MICROHARDNESS TESTER

Features

  • Automatic turret shifting between penetrator and object lens.
  • Hardness conversion between different hardness scales. .
  • Built-in printer
  • RS232 interface, capable for computer with software (Watch dog)
  • High resolution and high brightness LCD display

Standard

It conforms to ASTM E384 & ISO6507-2

Specifications

  • Measuring range: 5-3000HV
  • Test force: 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N (10, 25, 50, 100, 200, 300, 500, 1000gf)
  • Vickers scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2 HV0.3, HV0.5 & HV1
  • Magnifications of the measuring system: 400X, 100X
  • Min scale value of micrometer: 0.01μm
  • Max. measuring length of micrometer :200μm
  • Max. height of test piece: 75mm
  • Depth of throat: 110mm
  • Size of XY coordinate worktable: 100 x 100 mm
  • Travel of XY coordinate worktable : 25 x 25 mm
  • Resolution of XY coordinate worktable: 0.01 mm
  • Power supply: 220V/110V AC, 50Hz/ 60Hz
  • Dimensions: 470 x 320 x 500mm
  • Weight: approx. 40kg

Main accessories

  • Coordinate anvil( Table l:100x100mm) 1 pc.
  • Travel: 25 x 25mm, grade division of micrometer head: 0.01mm
  • Thin shaft anvil( Φ0.3-Φ5mm): 1 pc.
  • Thin plate anvil: 1 pc.
  • Flat nose pliers: 1 pc.
  • Large V-notch anvil: 1 pc.
  • Small V-notch anvil: 1 pc.
  • Diamond pyramid penetrator: 1 pc.
  • Micro-Vickers standardized block: 2 pcs.
  • Optional accessories
  • Knoop penetrator
  • CCD camera and Image card , softdog & software for data transmission

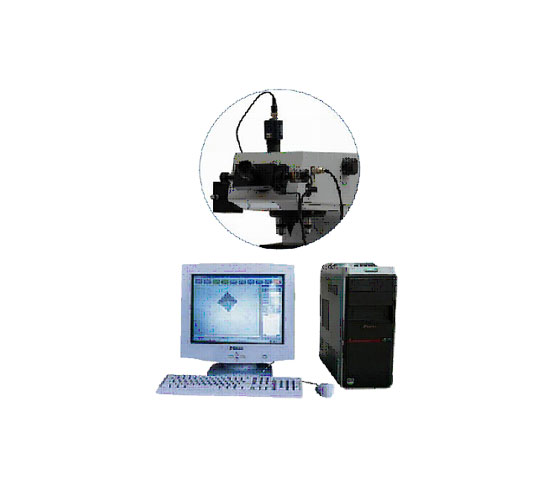

CCD IMAGE PROCESSING SYSTEM

CCD-IMAGE-PROCESSING

Feature & Use

The CCD image processing system can finish the process automatically: measurement of the diagonal length of indentation, hardness value display, testing data and image saving, etc.
It is available to preset the upper and lower limit of hardness value, the testing result can be inspected whether it is qualified automatically.
Proceed hardness testing on 20 test points at one time (preset the distance between test points at will), and save the testing results as one group.
Converting between various hardness scales and tensile strength
Inquire the saved data and image at any time
Customer may adjust the accuracy of the measured hardness value at any time according to the calibration of Hardness Tester

Standard accessories

  • Image processing software
  • Image card
  • Softdog
  • CCD camera
